Comprehensive Solution for Real-Time Robotic Welding Quality Control

The Evolution of Welding Technology: Towards Digital Precision and Total Traceability.

FD-AM automates robotic welding quality control through real-time 10 kHz data monitoring. The system ensures accurate digital traceability, replacing manual audits with instant anomaly detection for consistent production results.

System Architecture and Network Connectivity

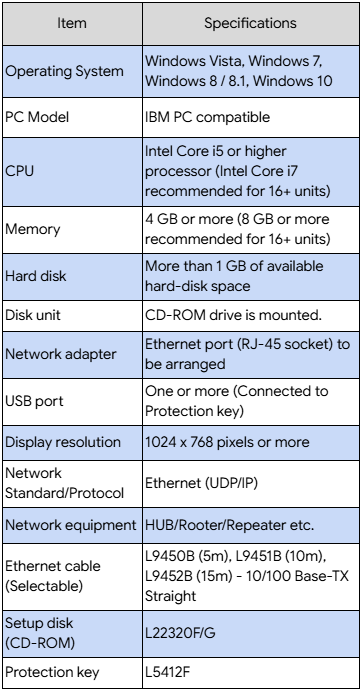

The FD-AM connects PCs, robots, and Welbee welding machines via Ethernet for centralized quality control. Supporting up to 32 simultaneous connections, the system enables secure and efficient monitoring of large-scale production from a single computer.

FD-AM Main Pillars.

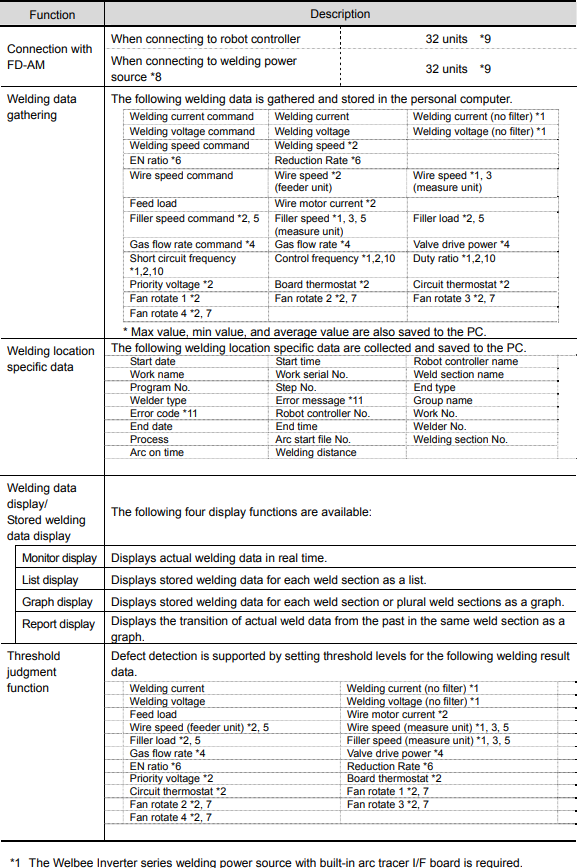

FD-AM provides total traceability by storing robot operational history and unique workpiece data. Its Superior Monitoring feature operates at 10 kHz to monitor current and voltage stability in real time. The system features automatic threshold-based Defect Detection and Predictive Diagnosis, which predict component wear to prevent production downtime.

Welding Power Source Compatibility.

The FD-AM is designed to work seamlessly with DAIHEN welding machines, but the level of functionality available depends on the model used.

~Welbee Inverter Series: Supports full functionality including 10 kHz sampling, feeder load monitoring, and internal diagnostics (WB-M, WB-P, WB-T, WB-A, WB-W, WB-DPS).

~D Series: Supports standard monitoring and location-specific data traceability (DM, DP, DR, DL, DW, DA).

~CPVE Series: Supports basic monitoring functions (CPVE-400R).
